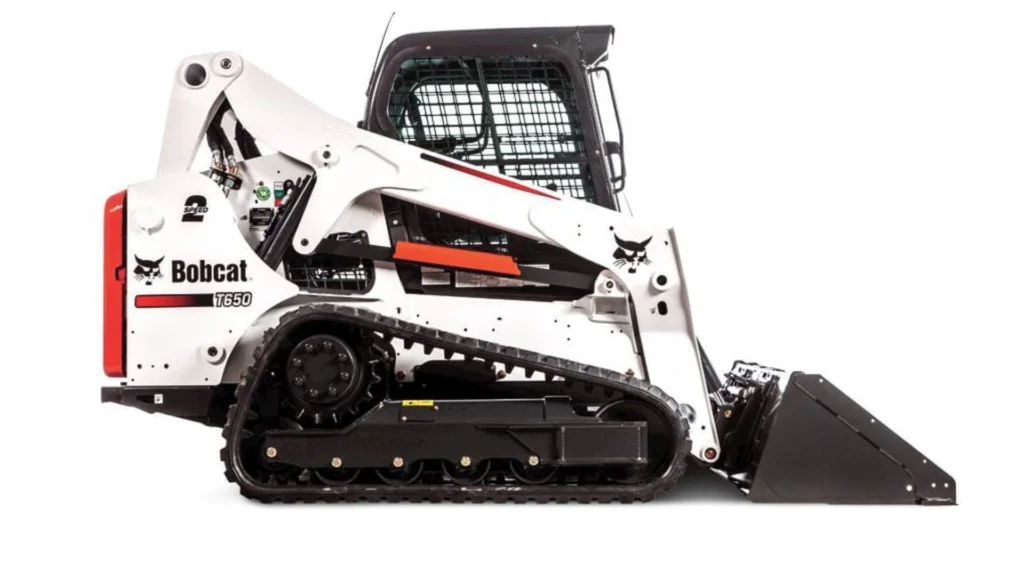

Bobcat T650 | 2400-2799 lbs. Compact Track Loader, Cabbed

General

• Make: Bobcat
• Model: T650
• Type: Compact track loader, enclosed cab
• Lift path: Vertical
• Rated operating capacity (ISO): 2,570 lb (1,166 kg)
• Operating capacity (50% of tip): 3,670 lb (1,665 kg)
• Tipping load: 7,343 lb (3,331 kg)
• Operating weight: 9,113 lb (4,134 kg)

Engine

• Fuel: Diesel, turbocharged, liquid-cooled
• Power: 74 hp (55 kW)
• Emissions: EPA Tier 4

Hydraulics

• Auxiliary flow (standard): 23 gpm (87 L/min)
• System relief at quick couplers: 3,500 psi (241 bar)

Lift performance

• Height to bucket hinge pin: 124 in (3.15 m)
• Reach at maximum height: 36 in (0.91 m)

Undercarriage

• Track width: 12.6 in (32 cm)
• Track length on ground: 57.7 in (1.47 m)
• Ground pressure: 5.7 psi (0.39 bar)

Dimensions

• Width without bucket: 72.9 in (1.85 m)
• Width with bucket: 74 in (1.88 m)
• Length without attachment: 108.4 in (2.75 m)
• Length with bucket: 136.8 in (3.47 m)
• Height with cab: 81.3 in (2.07 m)

Travel and capacities

• Travel speed: 6.2 mph (10 km/h)
• Travel speed with optional 2-speed: 8.7 mph (14 km/h)
• Fuel tank: 43.9 US gal (166 L)
