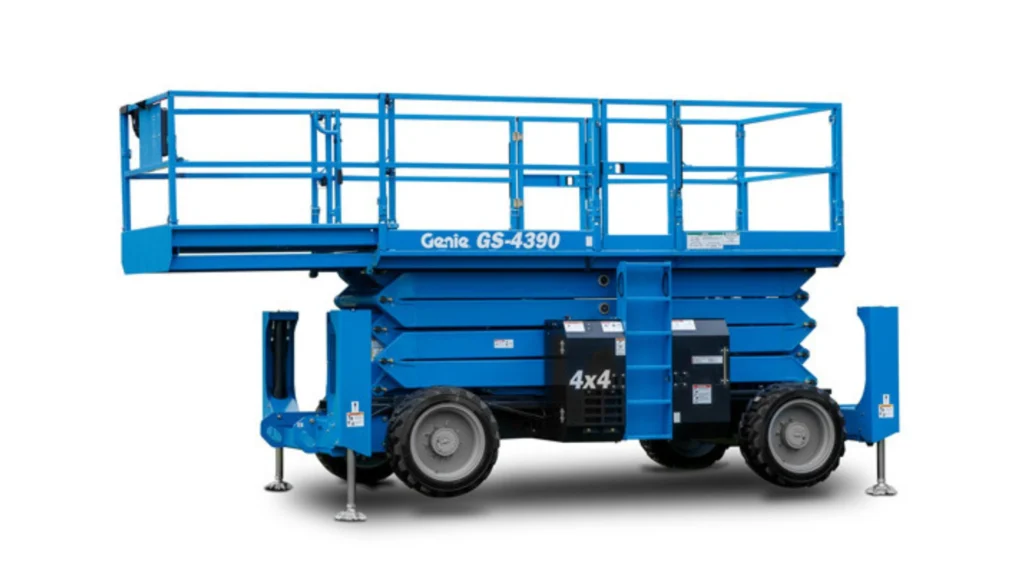

Genie GS-4390 RT | 41′-43′ 4WD | Scissor Lift

General

• Make: Genie
• Model: GS-4390 RT
• Type: Rough terrain scissor lift, 4WD
• Power: Gas/LPG dual fuel or diesel, depending on unit
• Machine weight: 12,894 lb (5,849 kg)

Working range

• Platform height: 43 ft (13.11 m)
• Working height: 49 ft (15.11 m)
• Platform height, stowed: 5 ft 11 in (1.80 m)
• Drivable at full height: Yes

Platform

• Platform capacity: 1,500 lb (680 kg)
• Extension deck capacity: 500 lb (227 kg)
• Platform size (inside): 13 ft 0.5 in x 6 ft (3.98 x 1.83 m)
• Slide-out extension deck: 5 ft (1.52 m) front; optional 4 ft (1.22 m) rear

Drive and performance

• Drive: 4-wheel drive with positive traction control
• Gradeability: 50%
• Turning radius (outside): 17 ft 6 in (5.33 m)
• Ground clearance: 14 in (36 cm)
• Tires: Foam-filled rough terrain
• Lift time: 45 sec
• Lower time: 39 sec
• Outriggers: Automatic leveling hydraulic (optional)

Dimensions

• Machine width: 7 ft 8 in (2.34 m)
• Machine length: 12 ft 11.25 in (3.94 m)
• Wheelbase: 9 ft 5 in (2.87 m)
• Stowed height (rails up): 9 ft 8 in (2.96 m)
• Stowed height (rails folded): 7 ft 5 in (2.26 m)

Capacities

• Fuel tank: 30 US gal (113.6 L)
