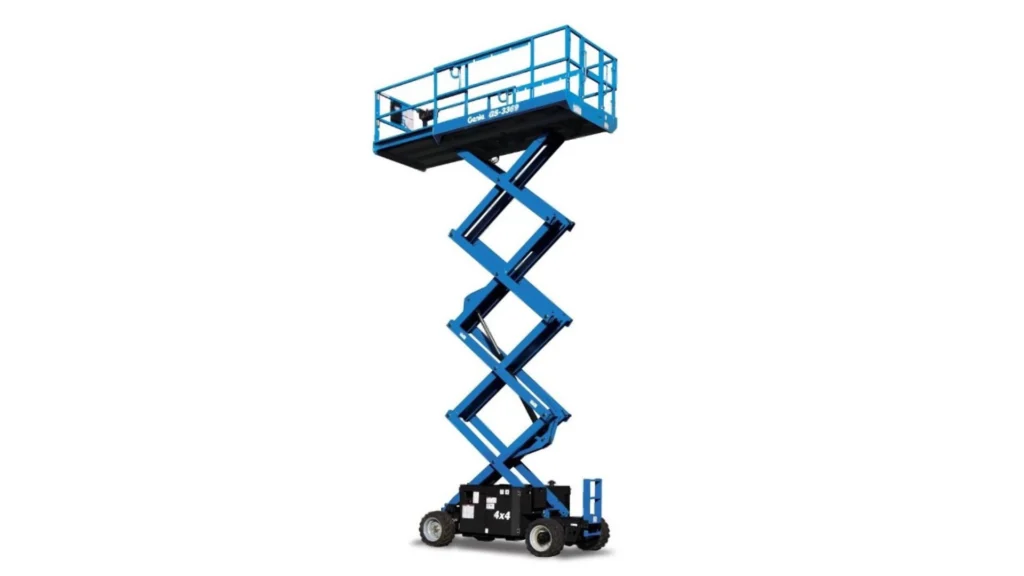

Genie GS-3369 RT | 33 ft. | Rough Terrain Diesel Scissor Lift

General

• Make: Genie
• Model: GS-3369 RT
• Type: Rough terrain scissor lift, 4WD
• Power: Dual fuel (gas/LPG) or diesel, depending on unit
• Machine weight: approx. 7,600–9,750 lb (3,447–4,420 kg), depending on options

Working range

• Platform height: 32 ft 8 in (9.96 m)
• Working height: 38 ft 8 in (11.96 m)
• Platform height, stowed: 4 ft 10 in (1.47 m)
• Drivable at full height: Yes

Platform

• Platform capacity: 1,000 lb (454 kg)
• Slide-out extension deck: 5 ft (1.52 m)

Drive and performance

• Drive: 4-wheel drive with positive traction control
• Axle: Active oscillating
• Gradeability: 35%
• Tires: Foam-filled rough terrain
• Outriggers: Auto-leveling (optional)

Dimensions

• Machine width: 5 ft 9 in (1.75 m)
• Machine length, stowed: 10 ft 3 in (3.12 m)
• Machine length with deck extended: 14 ft 9 in (4.5 m)
• Stowed height (rails up): 8 ft 6 in (2.59 m)
• Stowed height (rails lowered): 6 ft 3.5 in (1.92 m)

Capacities

• Fuel tank: 10 US gal (37.9 L)
